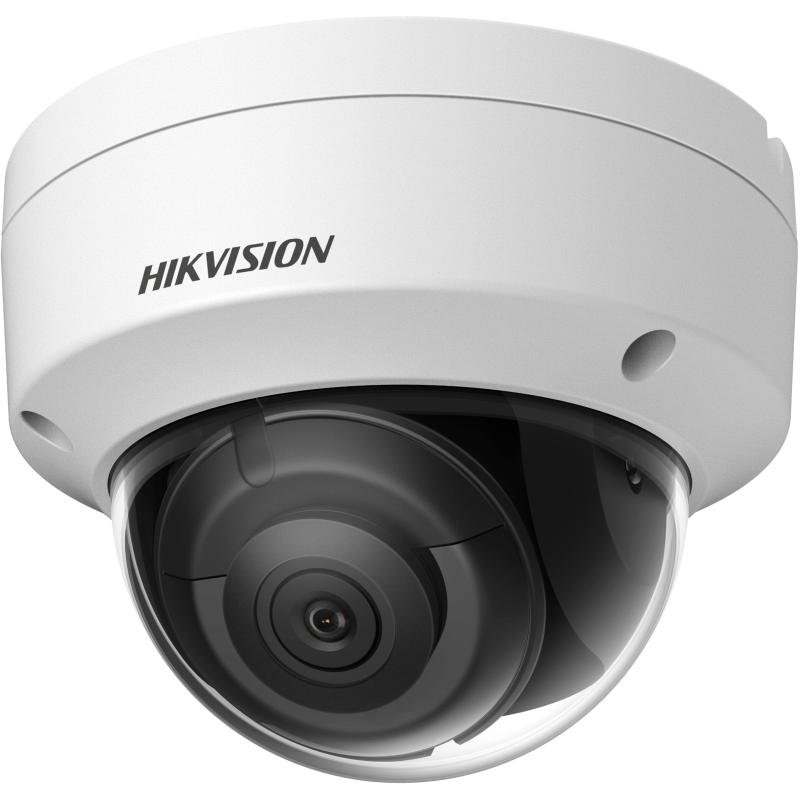

Camera IP Dome hồng ngoại 2MP chuẩn nén H.265+ DS-2CD2121G0-I
- Camera IP bán cầu hồng ngoại
- Chuẩn nén H265+/H265/H264/MJPEG
- Cảm biến ảnh: 1/3" Progressive Scan CMOS
- Độ phân giải: 2.0 Megapixel
- Độ nhạy sáng: 0 Lux with IR
- Độ phân giải 1920x1080:25fps(P)/30fps(N)
- Ống kính: 3.6mm
- Tầm xa hồng ngoại nhìn đêm: 30m
- Tính năng giảm nhiễu số 3D DNR, chống ngược sáng BLC
- Hỗ trợ dịch vụ HIK-Connect cloud
- Hỗ trợ thẻ nhớ
- Màu trắng
- Nguồn cấp 12 VDC & hỗ trợ PoE
- Xuất xứ: Trung Quốc
- Bảo hành: 24 tháng
| Camera | |
| Image Sensor | 1/28″ Progressive Scan CMOS |
| Min Illumination | Color:
0025 Lux @(F12; AGC ON) 007 Lux @(F20; AGC ON) 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Support |
| Lens | 28 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° 6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62° |
| Lens Mount | M12 |
| Aperture | F20 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | DWDR |
| 3-Axis Adjustment | Pan: 0° to 355° , tilt: 0° to 70° |
| Compression Standard | |
| Video Compression | Main stream: H265/H264
Sub stream: H265/H264/MJPEG |
| H264 Type | Main Profile/High Profile |
| H264+ | Support |
| H265 Type | Main Profile |
| H265+ | Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression (-S) | G711/G7221/G726/MP2L2 |
| Audio Bit Rate (-S) | 64Kbps(G711)/16Kbps(G7221)/16Kbps(G726)/32-128Kbps(MP2L2) |
| Image | |
| Max Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) |
| Sub Stream | 50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Support rotate mode Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software |
| Day/Night Switch | Auto/Scheduled/Alarm Triggered |
| Audio | |
| Environment Noise Filtering | Support |
| Sampling Rate | Max 48kHz |
| Network | |
| Network Storage | Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 8021X, QoS, IPv6 |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| General Function | One-key Reset , Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| General | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V ± 25%, 6W |
| IR Range | Up to 30 m |
| Protection Level | IP67, IK10 |
| Material | Metal&plastic |
| Dimensions | Φ 111 × 824 mm (Φ 44″ × 32″) |
| Weight | 500 g (11 lb) |
