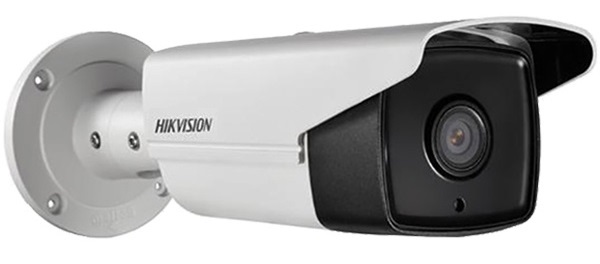

CAMERA IP HIKVISION 2MP DS-2CD2T25FHWD-I8
- Camera IP Trụ hồng ngoại 2MP chuẩn nén H265+
- Cảm biến hình ảnh 1/28" Progressive Scan CMOS
- Chuẩn nén H265+/H265/H264+/H264/MJPEG
- Ứng dụng công nghệ Darkfighter Siêu nhạy sáng
- Độ nhạy sáng ở chế độ màu : 0005 lux @(F12, AGC ON), 0 lux khi bật hồng ngoại; 25fps/30fps(1920×1080)
- Ống kính 28/4/6/12mm
- Chống ngược sáng thực 120dB WDR
- Hỗ trợ các tính năng thông minh VCA; Hỗ trợ 3 luồng dữ liệu; 3D DNR; BLC; ICR
- Công nghệ hồng ngoại EXIR 20, tầm xa hồng ngoại 80m
- Vỏ hoàn toàn bằng kim loại
- Tiêu chuẩn ngoài trời IP67; DC12V&PoE
- Tích hợp khe cắm thẻ nhớ SD/SDHC/SDXC
- Hỗ trợ dịch vụ Hik-Connect, hỗ trợ tính năng phát hiện vượt hàng rào ảo, phát hiện xâm nhập, phát hiện di dời vật thể, phát hiện hành lý vô chủ, phát hiện khuôn mặt
- Model FHWD: 50fps/60fps(1920×1080)
- Nguồn vào 12 VDC
- Xuất xứ: Trung Quốc
- Bảo hành: 24 tháng
- Chưa có adaptor
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/28 inch Progressive Scan CMOS |
| Min Illumination | Color: 0005 lux @ (F12, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Support |
| Lens | 28 mm, horizontal field of view: 108° |
| 4 mm, horizontal field of view: 864° | |
| 6 mm, horizontal field of view: 52° | |
| 8 mm, horizontal field of view: 40° | |
| 12 mm, horizontal field of view: 25° | |
| Lens Mount | M12 |
| Iris | F16 |
| Day & Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Digital noise reduction | 3D-DNR |
| 3-Axis Adjustment (bracket) | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
| Compression Standard | |
| Video Compression | Main stream: H265/H264 |
| Sub stream: H265/H264/MJPEG | |
| Third stream: H265/H264 | |
| H264 Type | Main Profile/High Profile |
| H264+ | Support |
| H265 Type | Main Profile |
| H265+ | Support |
| Video bit rate | 32 Kbps to 16 Mbps |
| Image | |
| Max Image Resolution | 1920 x 1080 |
| Main Stream | 50Hz: 50fps (1920 x 1080, 1280 x 960, 1280 x 720) |
| 60Hz: 60fps (1920 x 1080, 1280 x 960, 1280 x 720) | |
| Sub Stream | 50Hz: 25fps (640 x 360, 352 x 288) |
| 60Hz: 30fps (640 x 360, 352 x 240) | |
| Third Stream | 50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288) |
| 60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240) | |
| Image Enhancement | BLC/3D-DNR |
| Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
| ROI (Region of Interest) | Support 1 fixed region for mainstream and sub stream separately |
| Day/Night Switch | Auto/Scheduled |
| Network | |
| Network Storage | Support microSD/ SDHC/ SDXC card (128G) local storage, NAS (NFS, SMB/ CIFS), ANR |
| Alarm Trigger | Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 8021X, QoS, IPv6 |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| General Function | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,IP Address Filter |
| Interface | |
| Communication Interface | 1 RJ45 10M/100Mbps Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removaldetection |
| Line Crossing Detection | Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported |
| Object Removal Detection | Objects removed from the pre-defined region, such as the exhibits on display |
| Unattended Baggage Detection | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Face Detection | Human face appears in the image can be detected and trigger linkage method |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply | 12VDC ± 25%, 5W |
| PoE (8023af 425 – 57V, class 3) | |
| Power Consumption | Max 12W |
| Weather Proof | IP67 |
| IR Range | 80 meters |
| Dimensions | Φ105 x 2997 mm |
| Weight | 1200g |
