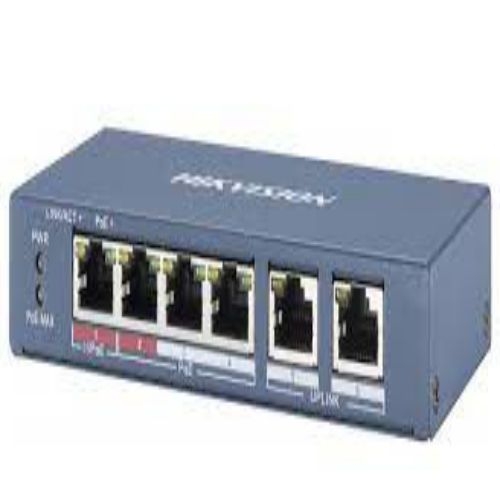

Switch HIKVISION DS-3E0106P-E/M

Thương hiệu: HIKVISION | Tình trạng: Còn hàng
1.170.000₫
Thông tin sản phẩm đang được cập nhật
Xem thêm
Số lượng:
HOTLINE TƯ VẤN VÀ SUPPORT SAU BÁN HÀNG: 1900.86.68.15 (Cước phí 1000đ/phút)

4-port 10/100Mbps Unmanaged PoE Switch HIKVISION DS-3E0106P-E/M

- 4 x 10/100M PoE ports, 2 x 10/100M RJ45 ports.

- IEEE 802.3at/af standard for PoE ports (Max. Power output for PoE is 35W).

- IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards.

- Overvoltage protection up to 6 kV for PoE ports.

- Transmission over long distances, up to 300m.

- Switching with performance appropriate for the transmission medium.

- Transfer with intermediate storage.

- Solid, high-strength metal housing.

- Reliable design without a cooler.

Đặc tính kỹ thuật

Network parameters
Number of ports 4 PoE 10 / 100M RJ45
1 uplink port 100M
Port type RJ45, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Switching method Store-and-forward transfer
Work mode Standard Mode (Default), Long Range Mode
High priority ports Ports 1 and 2
Long distance ports Ports 1-4
MAC address table 4K
Switching speed 1.6 Gbps
Packet Forwarding Rate 0.8928 Mbps
Internal cache 768 kbps
Power over PoE
PoE standard Ports 1-4: IEEE 802.3af, IEEE 802.3at
PoE Power Terminals Ports 1-4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide simultaneous power.
PoE port Ports 1-4
Max. port capacity Ports 1-4: 30W
PoE Power Budget 35 watts
Dial function
Long distance transmission of information Ports 1-4: up to 300 m.
The main
Coating Metal, no cooler design
Gross weight 0.52 kg
Net weight 0.265 kg
Dimensions 145 × 68.45 × 25.6 mm
Working temperature -10 to +40 ° C
Storage temperature -40 to +85 ° C
Working humidity 5% to 95% (non-condensing)
Storage humidity 5% to 95% (non-condensing)
Nutrition 48VDC, 0.8A
Standby power consumption less than 5 W
Max. power consumption 38 watts
Power supply 38 watts

- Bảo hành: 24 tháng.
