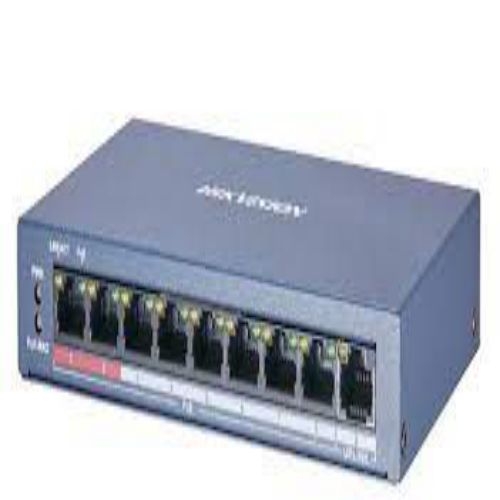

8-Port 100M PoE Switch HIKVISION DS-3E0109P-E/M(B)

- DS-3E0109P-E/M(B) is a layer 2 100M PoE switch. Based on wire speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 250 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports.

- 8 x 100M PoE ports and 1 x 100M Ethernet port.

- Supports IEEE802.3at/af.

- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.

- Supports high priority ports.

- Supports 8-core power supply.

- Up to 250m transmission distance.

- PoE port with 6 KV surge protection.

- Supports PoE output power management.

- 100M network access.

- Wire-speed forwarding and non-blocking design.

- Store-and-forward switching.

- Solid high-strength metal shell.

- Fan-free design with high reliability.

Đặc tính kỹ thuật

Model DS-3E0109P-E/M(B)
Network parameters
Port number 8 x 100M PoE ports, 1 x 100M Ethernet port.
Port type RJ45 port, Full duplex, MDI/MDI-X adaptive
Standard  IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type Store-and-forward switching
Ports with high priority 1 to 2 ports
Ports for long-distance transmission 1 to 8 ports
MAC address table 2K
Exchange capacity 1.8 Gbps
Packet forwarding rate 1.339 Mpps
Internal cache 1 Mbits
PoE power supply
Power supply standard IEEE 802.3af, IEEE 802.3at
Power supply cable core Supports 8-core power supply,  Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE port 1 to 8
Max. port power 30W
Max. machine power 60W
Mechanical structure
Shell  Metal material, fan-free design
weight 0.35 kg (0.77 lb)
Dimensions (L × H × D) 170 mm × 27.6 mm × 93.1 mm (6.7inch × 1.1inch × 3.7inch)
Operating temperature 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
Storage temperature –40 ˚C to 85 ˚C (–40 ˚F to 185 ˚F)
Relative humidity 5% to 95% (no condensation)
Power supply
Power supply specification 48 VDC, 1.35 A

- Bảo hành: 24 tháng.
