Switch HIKVISION DS-3E0310P-E/M

Thương hiệu: HIKVISION | Tình trạng: Còn hàng
2.370.000₫
Thông tin sản phẩm đang được cập nhật
Xem thêm
Số lượng:
HOTLINE TƯ VẤN VÀ SUPPORT SAU BÁN HÀNG: 0816.767.575 (Cước phí 1000đ/phút)

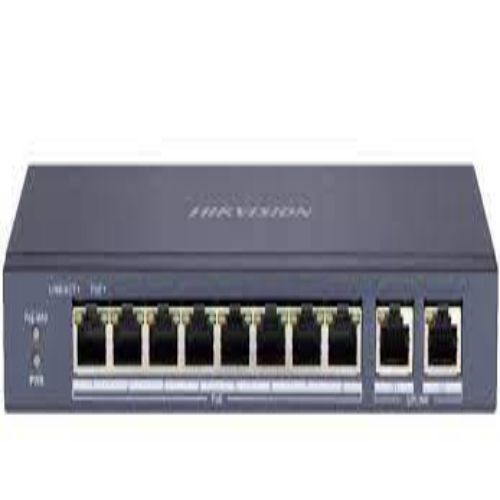

8-port 10/100Mbps Unmanaged PoE Switch HIKVISION DS-3E0310P-E/M

- 8 × 10/100Mbps PoE ports, and 2 × Gigabit RJ45 port.

- IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).

- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.

- 6 KV surge protection for PoE ports.

- Up to 300 m long-range transmission.

- Wire-speed forwarding.

- Store-and-forward switching.

- Solid high-strength metal shell.

- Reliable fan-free design.

Đặc tính kỹ thuật

Network parameters
Number of ports 8 × 10/100Mbps PoE ports, 2 × Gigabit RJ45 ports
Port type RJ45, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Switching method Store-and-forward switching
Work mode Standard mode (default), Extend mode
Ports for long-distance
transmission
Ports 1 to 8
MAC address table 16K
Switching speed 5.6 Gbps
Packet Forwarding Rate 4.1664 Mpps
Internal cache 4 Mbits
Power over PoE
PoE standard Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power
supply simultaneously.
PoE port Ports 1-8
Max. port capacity Ports 1 to 8: 30 W
PoE Power Budget 60 watts
Dial function
Long distance transmission of information Ports 1 to 8: up to 300 m
General
Shell Metal material, fan-free design
Net weight 0.555 kg
Dimensions 217.6 mm × 103.35 mm × 27.8 mm
Working temperature -10 to +40 ° C
Storage temperature -40 to +85 ° C
Working humidity 5% to 95% (non-condensing)
Storage humidity 5% to 95% (non-condensing)
Nutrition DC 48 V, 0.8 A
Standby power consumption less than 5 W
Max. power consumption 65W
Power supply 65W

- Bảo hành: 24 tháng.
